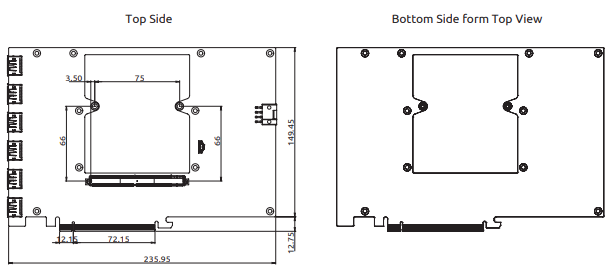

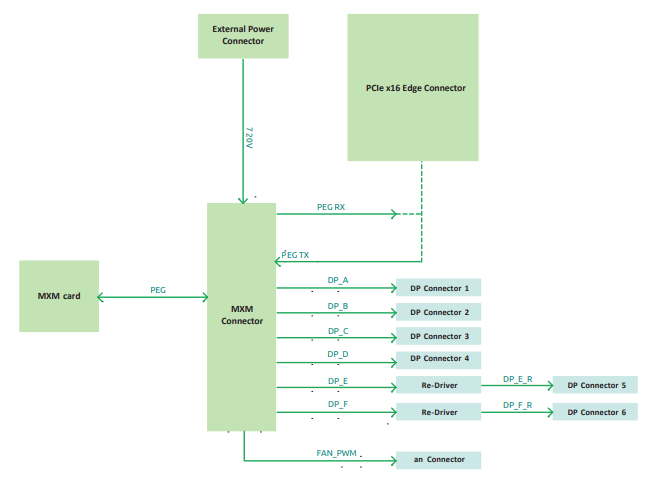

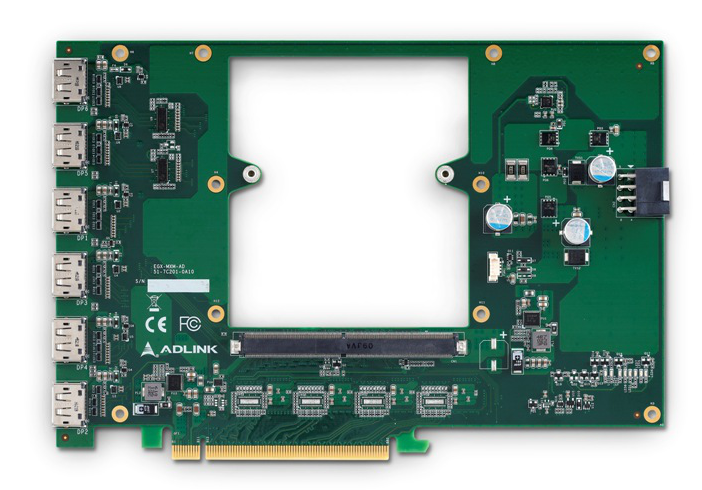

MXM-AXe Dev KitPCIe-to-MXM adapter supporting ADLINK Mobile PCI Express Modules with NVIDIA® Quadro® embedded GPUs. Download Datasheet Note: As of now only the DP1 - DP4 ports can work with the Intel ARC GPU. Features MXM 3.1 Type A, Type B, Type B+ compatible. Supports NVIDIA® Quadro® embedded GPUs. 6 DP++ connectors support up to 4 display outputs. PCIe Gen4 support (optional, dependent on GPU specifications). Specifications?Supported MXM Modules MXM 3.1 Type A, Type B, Type B+ compatible. Display outputs 6 DP++ via DP 1.4 connectors. max. 4 simultaneous outputs. Resolution Max. 7680 x 4320, dependent on MXM module. Fan connectors 12V DC fan power connector. Ext. Power Input Supports external power for MXM module, up to 120W. PCIe PCIe Gen3 x16 (Gen4 design reserved). Operating system Windows 10, Linux driver supported. Operating temperature -40°C to 85°C. Operating humidity ~95% @40C (non-condensing). Dimensions 235.95mm x 162.2mm. Functional diagram Mechanical drawing </div>
