Ampere Altra Developer Rugged

Ampere Altra Developer Rugged - 3 views


Components

Ampere Altra Developer Rugged

System Computer-on-Module COM-HPC Server Type module with Ampere® Altra® 32/64/96/128-core SoC
Carrier Board COM-HPC Server Base carrier board
Memory 2x16GB/4x16GB/6x16GB DDR4
Storage 512GB/1TB NVMe M.2
USB USB 3.0 x6 (front x2/rear x4)
Power unit 750 W
Cooling Liquid cooling
Enclosure 4U rackmount server chassis with sliding rail mounting holes


Interfaces

Top Panel

Power button 1x
Reset button 1x
LAN LED 2x
HDD LED 2x
USB Type-C Inactive
USB USB 3.0 x2

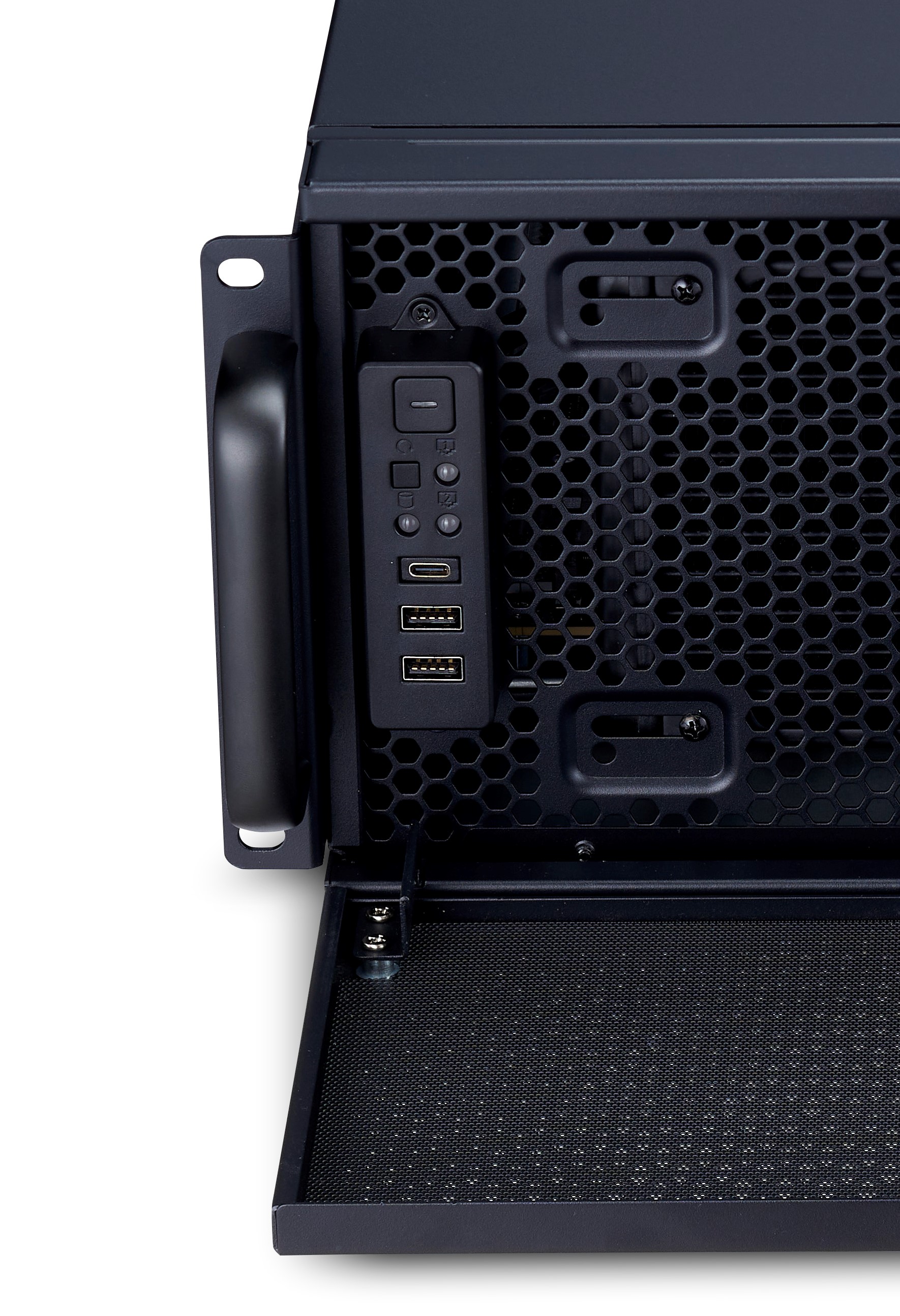

AADR Front with port interface


Rear Panel

Ampere Altra Developer Rugged

Serial number
VGA Analog VGA display
USB USB 3.0 x4
Serial console Serial console for debugging
GbE (system) In Band
GbE (BMC) Out of Band
Power input 100-240V
Power switch Runs power to the system (without booting up)

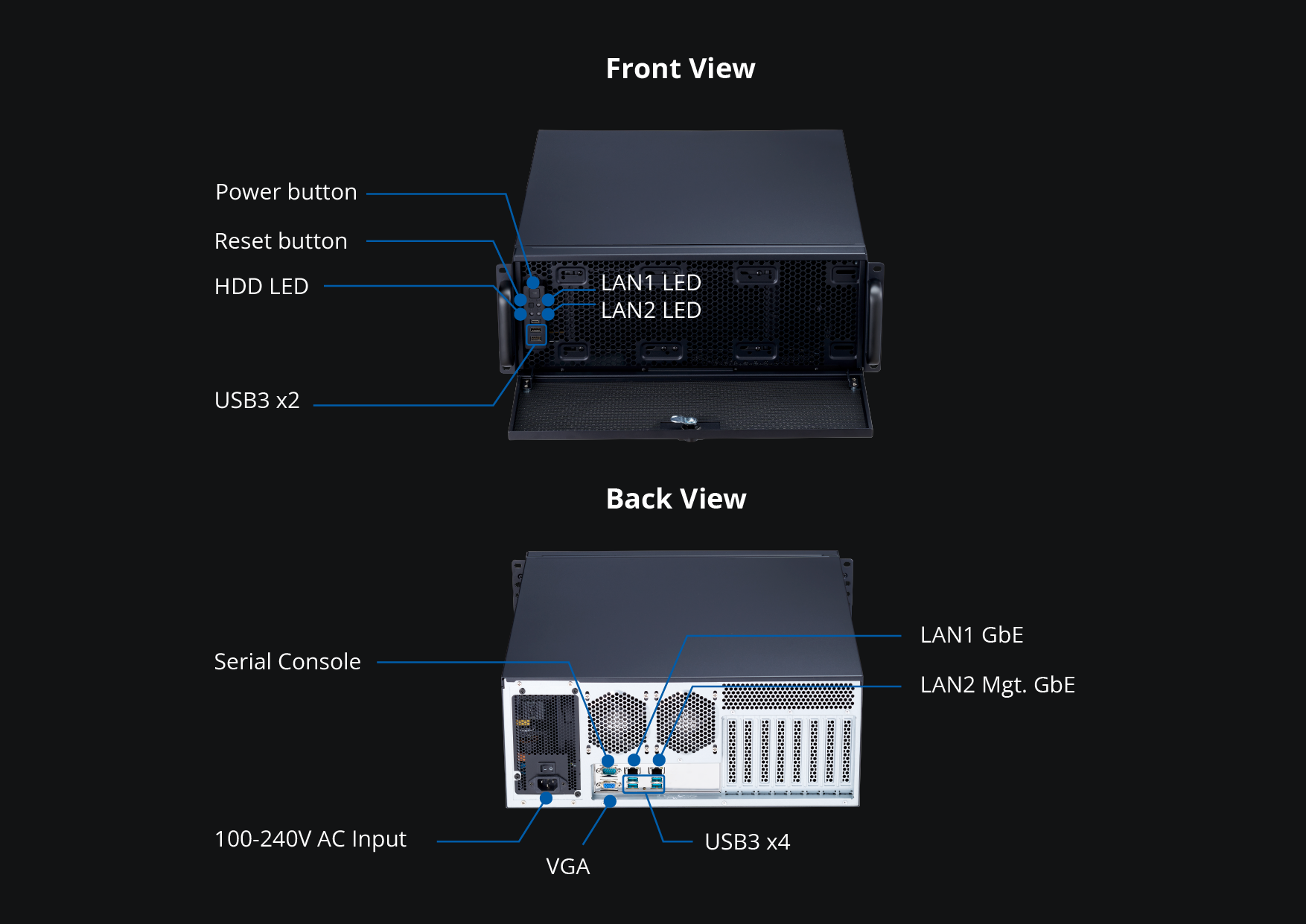

AADR front and back side with I/O interfaces diagram
