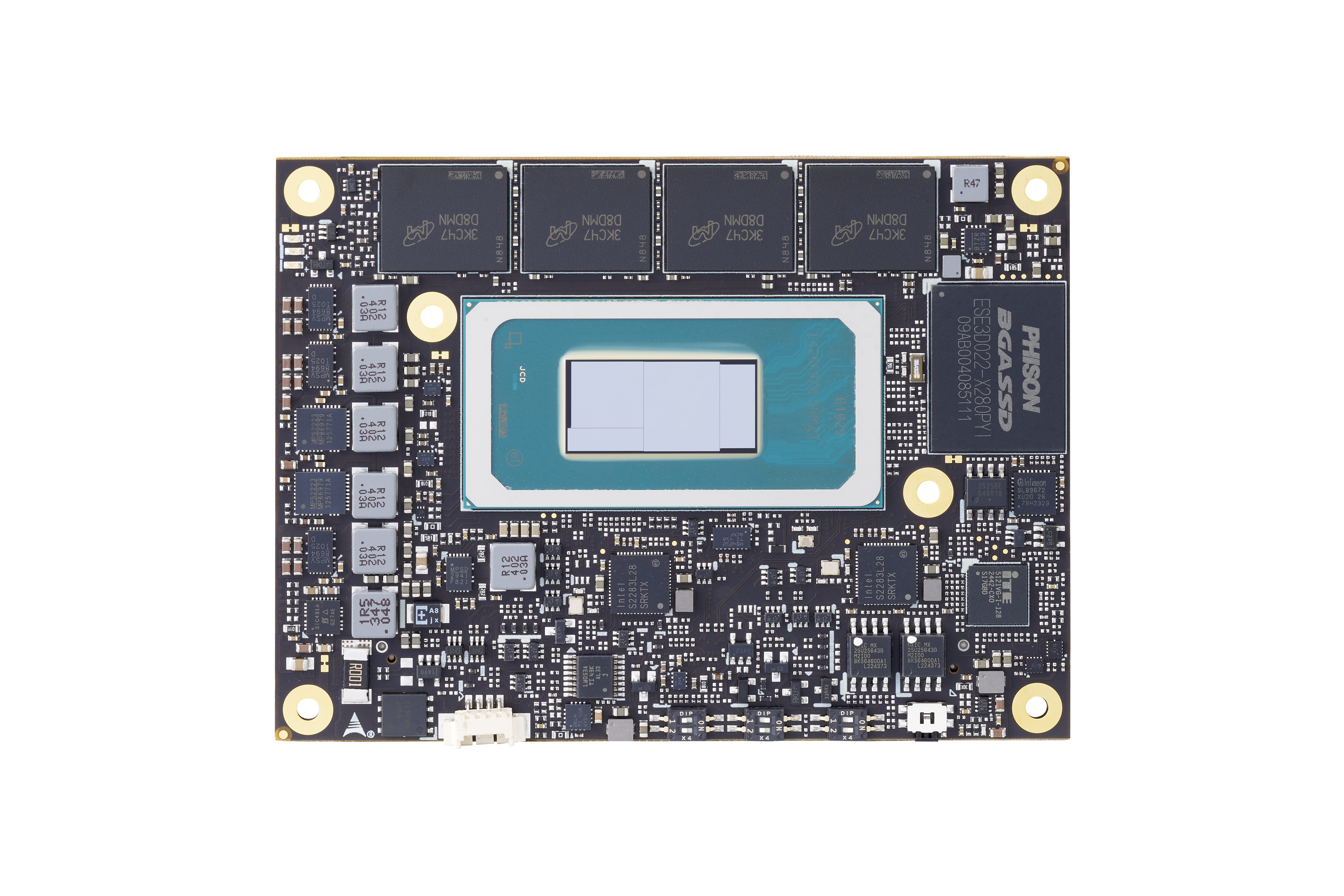

COM-HPC Mini module based on Meteor Lake

A COM-HPC R2.1 Mini module, named as COM-HPC-mMTL

Download User Manual


Key Features of COM-HPC-mMTL

  • Smallest COM module with Intel® Core™ Ultra processors and rich I/O

  • Up to 16 CPU cores, 8 Xe GPU, and 8.2 TOPS VPU

  • Up to 64GB LPDDR5x memory at max. 7467MT/s

  • Up to 16 PCIe lanes, 2x 2.5GbE LAN

  • Multiple DDI/USB4, USB3.2/2.0, and SATA3.0 (optional)

  • 2x MIPI-CSI and onboard SSD (optional)


Specifications

Core System

Core System (SoC)

  • Intel® Core™ Ultra 7/5 Processors at 28W/15W (formerly Meteor Lake-U/H)
Processor Frequency Cache TDP CPU Cores/Threads
Ultra 7 155H 1.4(4.8)GHz 24MB 28W 6P+8E+2LP-E/22T
Ultra 5 135H 1.7(4.6)GHz 18MB 28W 4P+8E+2LP-E/18T
Ultra 5 125H 1.2(4.9)GHz 18MB 28W 4P+8E+2LP-E/18T
Ultra 5 135U 1.6(4.4)GHz 12MB 15W 2P+8E+2LP-E/14T
Ultra 5 125U 1.3(4.3)GHz 12MB 15W 2P+8E+2LP-E/14T

Note: For certain processor or memory capacity SKUs not listed, please contact our ADLINK representative.

Memory

  • Up to 64GB (4x 16GB) LPDDR5x soldered-down memory at max. 7467MT/s

Embedded BIOS

  • AMI UEFI with CMOS backup in 32MB SPI BIOS (dual BIOS opt.)

Expansion Buses

  • Up to 16 PCIe Gen4 lanes
    4x PCIe at lanes 8-11: x4 configuration
    4x PCIe at lanes 12-15: x4 configuration
    4x PCIe at lanes 0-3: x1, x2, x4 configurable
    Up to 4x PCIe at lanes 4-7: x1, x2, x4 configurable

Note: PCIe lane 6 muxed with SATA port 1; PCIe lane 7 muxed with SATA port 0 and NBASE-T port 1; defaults are PCIe lane 6 and NBASE-T port 1.

SEMA Board Controller

  • Support voltage/current monitoring, power sequence debug support, logistics and forensic information, general purpose I2C, UART, GPIO, watchdog timer, and fan control

Debug Headers

  • 40-pin multipurpose flat cable connector for use with DB40-HPC debug module providing BIOS POST code LED, EC access, SPI BIOS flashing, power test points, debug LEDs


Display

Digital Display Interface

  • DDI 0/1 supporting DP1.4a, HDMI2.0b, DVI (Default DDI 0)

LVDS

  • 1x eDP1.4b

USB

  • Up to 3x USB4, supporting DP alt mode (Default USB4 0/1)
    Note: 3x USB4 ports muxed with DDI 0/1 and USB3 port 2; Custom BIOS and re-timer/PD required (by project support)


Camera

MIPI CSI

  • 2x MIPI-CSI on-board FFC connector


Audio

Chipset

  • Integrated on SoC

Codec

  • On COM-HPC mini Base Carrier (Realtek solution on carrier)


Ethernet

Intel® MAC/PHY

  • Up to 2x Intel® Ethernet Connection I226 Series (I226 supports TSN by build option)

Interface

  • 2x 2.5GbE and 1000/100/10 Mbit/s Ethernet connection
    Note: NBASE-T_1 muxed with PCIe lane7/SATA port 0; default is NBASE-T_1.


Multi I/O and Storage

USB

  • 3x USB3.2 (port 0,1,2)

  • 4x USB2.0 (port 4,5,6,7)
    Note: USB port 2 muxed with USB4(by project support)

SATA

  • Up to 2x SATA3.0 (SATA 0, 1) (optional)
    Note: SATA_1 muxed with PCIe_6; SATA_0 muxed with NBASE-T port 1/PCIe_7 (by project support)

Serial

  • 2x UART ports with console redirection (UART from SoC by project basis)

GPIO

  • 12x GPIO (GPI with interrupt) (GPIO from SoC by project basis)

On-board Storage

  • NVMe SSD by project basis for 28W SoC SKU only


Super I/O

  • Supported on carrier if needed (standard support W83627DHG-P, other Super I/O supported by project basis)


Trusted Platform Module (TPM)

Chipset

  • Infineon

Type

  • TPM 2.0 (SPI based)


Power

Standard Input

  • AT mode 12V±5%; Vin 8-20V (single power rail)

Power States

  • C0-C6, S0, S3, S5; ECO mode (Wake-on-USB S3/S4, WoL S3/S4/S5)


Mechanical and Environmental

Form Factor

  • PICMG COM-HPC: Rev 1.2 mini Type

Dimension

  • Compact size: 95 mm x 70 mm

Operating Temperature

  • Standard: 0°C to 60°C


Operating Systems

Standard Support

  • Windows 11 IoT Enterprise LTSC, Windows 10 IoT Enterprise LTSC

  • Ubuntu 24.04 LTS

  • VxWorks (by project)


Ordering Information

Module

COM-HPC-mMTL-155H-64G

  • COM-HPC mini module with Intel Meteor Lake Core Ultra 7 155H, 64GB LPDDR5 memory

COM-HPC-mMTL-155H-32G

  • COM-HPC mini module with Intel Meteor Lake Core Ultra 7 155H, 32GB LPDDR5 memory

COM-HPC-mMTL-125U-64G

  • COM-HPC mini module with Intel Meteor Lake Core Ultra 5 125U, 64GB LPDDR5 memory

COM-HPC-mMTL-125H-16G

  • COM-HPC mini module with Intel Meteor Lake Core Ultra 5 125H, 16GB LPDDR5 memory

COM-HPC-mMTL-125U-16G

  • COM-HPC mini module with Intel Meteor Lake Core Ultra 5 125U, 16GB LPDDR5 memory

Note: For certain processor or memory capacity SKUs not listed, please contact our ADLINK representative.


Accessories

Heat Spreaders

HTS-mMTL-B

  • Heatspreader for COM-HPC-mMTL with threaded standoffs for bottom mounting


Passive Heatsinks

THSF-mMTL-B

  • High-profile Heatsink with Fan for COM-HPC-mMTL with threaded standoffs for bottom mounting
