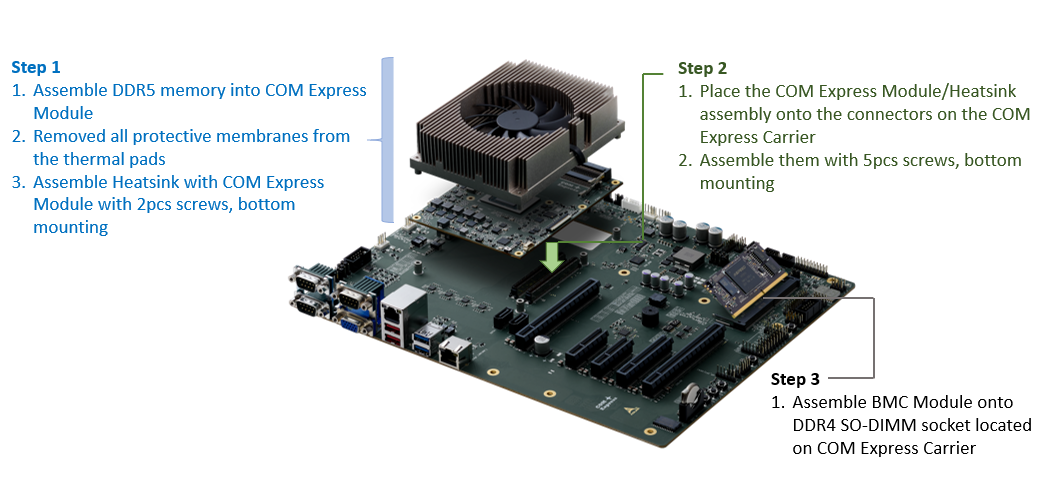

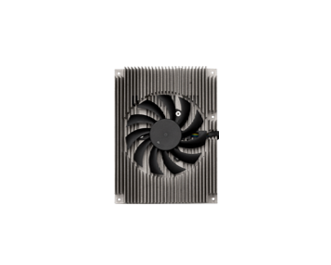

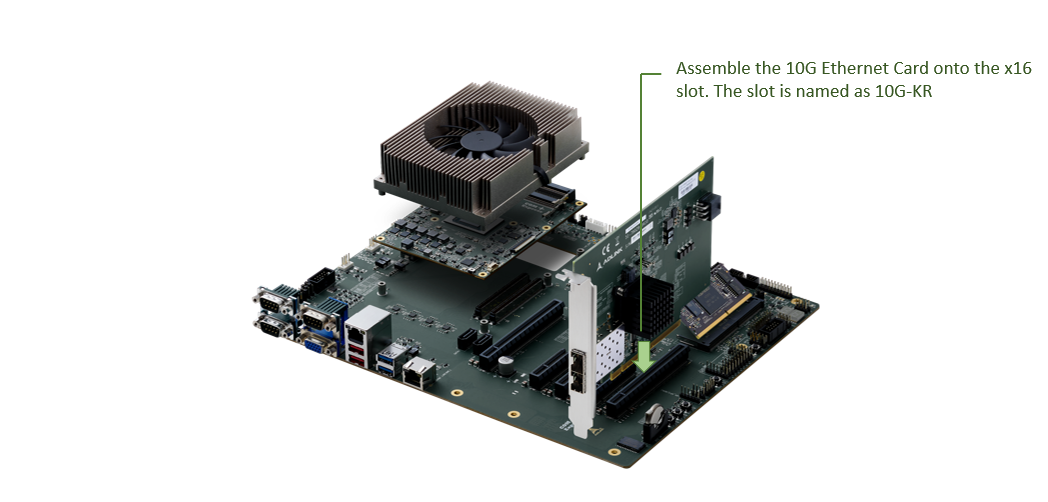

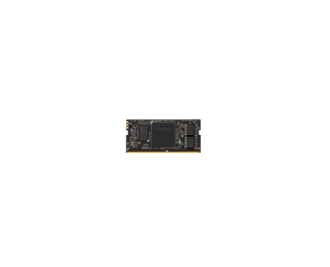

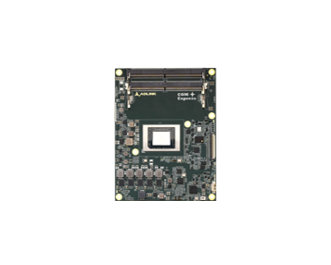

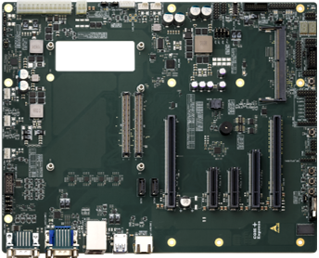

Installation This section will simply go through how to assemble the COM Express Module/Heatsink/Carrier Check to make sure that all the components listed below are present and in working order No. Description Photo 1 COM Express Module based on Ryzen V3000 V3C18I 2 COM Express Carrier 3 COM Express Heatsink dedicated for Ryzen V3000 V3C18I 4 BMC Module based on AST2600 at RunBMC form-factor 5 Screws 2pcs for assemble COM Express Module and Heatsink5pcs for assemble with COM Express Module/Heatsink with Carrier 6 10G Ethernet Card Optional. 2x 10G SFP+ Note : the Dev Kit doesn’t include DDR5 SO-DIMM memory. please prepare it additionally Procedure below illustrates the assemble flow If the configuration you ordered is with 10G Ethernet Card, plug in the card onto the slot, as shown as below
