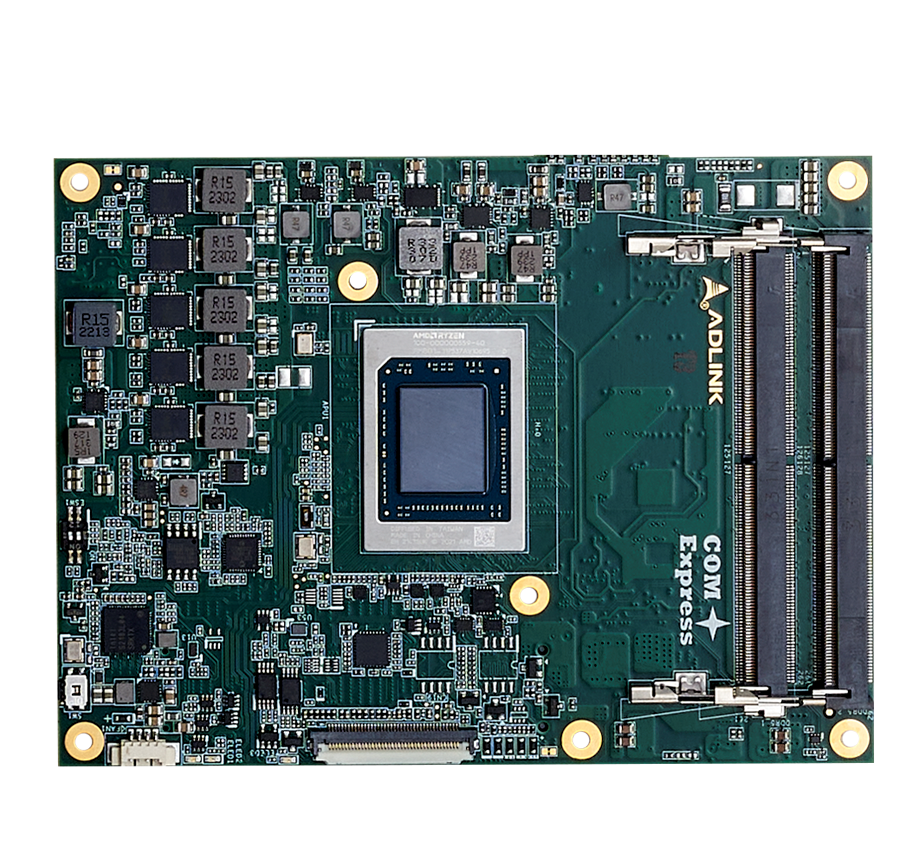

AMD Ryzen V3000 at COM Express Type 7 Well Fit for Edge Networking and Communication This page aims to highlight the capabilities of the COM Express VR7 module (Express-VR7 as product name). For extended information, please refer to the user manual. Video Introduction Download User Manual Features 8 Cores at 15W/45W — Best Performance per Watt in its class PICMG COM Express Rev.3.1 Up to 64GB (2x32GB) DDR5 SO-DIMM at 4800 MT/s, ECC/non-ECC Up to 14x PCIe Gen4 lanes 2x 10G Ethernet, 1x 2.5G Ethernet Extreme Rugged operating temperature: -40°C to 85°C (V3C18I CPU SKU) Specifications Core System Processor (SoC) AMD Embedded Ryzen V3000 platform Processor Cores/Threads Cache TDP V3C48 8C/16T 16GB 45W V3C18I 8C/16T 16GB 15W Please check the user manual for the comprehensive CPU SKU. Memory Up to 64GB (2x 32GB) DDR5 SO-DIMM, ECC/non-ECC memory, max. 4800MT/s. Embedded BIOS AMI Aptio V UEFI with CMOS backup Expansion Buses PCI Express x8 PCI Express Gen4: Lanes 16-23 (configurable to one x8 or two x4, two controller) x4 PCI Express Gen4: Lanes 0-3 (configurable to one x4, two x2, four x1, four controller) x2 PCI Express Gen4: Lanes 4-5 (configurable to one x1 or one x2, one controller) Others SMBus, I2C, LPC bus Ethernet 10G-KR Ethernet AMD 10G Ethernet controller integrated in SoC 2x 10GBASE-KR and sideband signals used as back-plane or 10G-SFP+ or 10GBASE-T depends on the Hardware and BIOS configuration as well as the 10G adapter card. get detail at user manual or 10G Ethernet Card Introduction Ethernet Intel® Ethernet Controller I226 Series Up to 2.5GbE, 1000/100/10 Mbit/s connections. Multi I/O and Storage USB 4x USB 3.x/2.0/1.1(USB 0-3) SATA 2x SATA 6Gb/s (SATA 0-1) UART 2x UART ports with console redirection GPIO 8xGPIO Trusted Platform Module (TPM) Infineon solution: TPM 2.0, SPI bus based Board Controller A board controller located on the COM Express module for generic functionality support Voltage/current monitoring, power sequence debug support, AT/ATX mode control, logistics and forensic information, general purpose I2C, watchdog timer, fan control, and failsafe BIOS (dual BIOS by build option) Module Management Controller (MMC) An optional module management controller (MMC) is located on COM Express module for supporting IPMB An IPMB, Intelligent Platform Management Bus, is defined for platform management functions. The IPMB is used (optionally) with a Carrier based BMC (Board Management Controller, for example, AST2600) Master. Debug Header 40-pin multipurpose flat cable connector for use with DB40-HPC debug card providing BIOS POST code LED, EC access, SPI BIOS flashing, power test points, debug LEDs Power Standard Input ATX: 12V±5% / 5Vsb ±5%; or AT: 12V±5%. Wide Input ATX: 8.5-20 V / 5Vsb ±5%; or AT: 8.5-20V. Management ACPI 5.0 compliant. ECO mode Supports deep S5 mode for 5Vsb power saving. Mechanical and Environmental Form Factor PICMG COM Express Rev 3.1 (COM.0 R3.1), Type 7 Dimensions Basic size 125 x 95 mm Operating Temperature Standard: 0°C to 60°C (storage: -20°C to 80°C). Extreme Rugged: -40°C to 85°C (storage: -40°C to 85°C, build option, V3C18I CPU SKU). Humidity 5-90% RH operating, non-condensing. 5-95% RH storage (and operating with conformal coating). Shock and Vibration IEC 60068-2-64 and IEC-60068-2-27. MIL-STD-202 F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D. HALT Thermal Stress, Vibration Stress, Thermal Shock and Combined Test Operating Systems Standard Support Yocto Linux, Ubuntu 22.04.3 LTS
