User Interfaces

Pinout and Signal Descriptions

Pin Summary

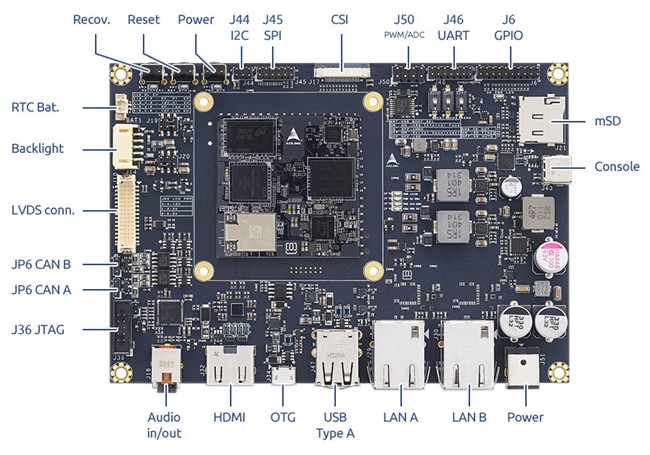

SBC3-IMX93 (Top)

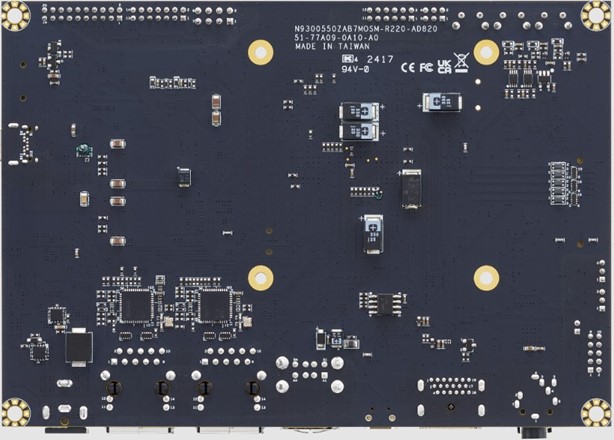

SBC3-IMX93 (Bottom)

Signal Terminology Descriptions

The following information provides descriptions of the terms used in the signal description table:

Term	Description
I	Input to the module
O	Output from the module
O OD	Open drain output from the module
I OD	Open drain input to the module, with mandatory PU (pull up) on module
OD	Open drain
I/O	Bi-directional Input/Output
PU	PU (pull-up) resistor on module
PD	PD (pull-down) resistor on module
VDD_IN	Main power source from carrier to module
CMOS	Logic input or output
GBE MDI	Differential analog signaling for Gigabit Media Dependent Interface
LVDS DP	Low Voltage Differential Signal for DisplayPort interface
LVDS D-PHY	Low Voltage Differential Signal for MIPI CSI-2 cameras and DSI displays
LVDS M-PHY	Low Voltage Differential Signal for MIPI CSI-3 cameras
LVDS LCD	Low Voltage Differential Signal for LCD displays
LVDS PCIE	Low Voltage Differential Signal for PCIe
LVDS SATA	Low Voltage Differential Signal for SATA
TMDS HDMI	Transition Minimized Differential Signal for HDMI displays
USB	DC coupled differential signaling for traditional (non-Superspeed) USB signals
USB SS	Differential signal for SuperSpeed USB signals
USB VBUS 5V	5V tolerant input for USB VBUS detection
3.3V	3.3V Power Domain: Active while CARRIER_PWRON is high and CARRIER_SBY# is NOT active (i.e. both signals are high)
1.8V	1.8V Power Domain: Active while CARRIER_PWRON is high and CARRIER_SBY# is NOT active (i.e. both signals are high)
3.3Vsb	3.3V Power Domain: Active while CARRIER_PWRON is high (regardless of CARRIER_SBY#)
1.8Vsb	1.8V Power Domain: Active while CARRIER_PWRON is high (regardless of CARRIER_SBY#)

DSI

All DSI signals are sent to a DSI-to-HDMI bridge.

Note: DSI is routed to the ADV7535 and output to the HDMI connector.

HDMI

The connector is located on the carrier, with a maximum resolution of up to 1080p.

Note: HDMI is derived from DSI signals over the ADV7535/WLCSP-49, with support provided in the Yocto standard.

LVDS

The connector is placed on the carrier

Hirose DF13E-30DP

Pin	Description	Pin	Description
1	VDD	2	VDD
3	LVDS_A0_P	4	LVDS_A0_N
5	LVDS_A1_P	6	LVDS_A1_N
7	LVDS_A2_P	8	LVDS_A2_N
9	LVDS_A3_P	10	LVDS_A3_N
11	LVDSA_CLKP	12	LVDSA_CLKN
13	LVDS_CTRL_CLK	14	LVDS_CTRL_DAT
15	GND	16	GND
17	N/A	18	N/A
19	N/A	20	N/A
21	N/A	22	N/A
23	N/A	24	N/A
25	N/A	26	N/A
27	GND	28	GND
29	GND	30	GND

J14: Backlight connector

Pin	Description
1	ENABLE
2	GND
3	12V_carrier
4	Backlight Control
5	5V_carrier

MIPI CSI Camera

22-pin CSI connector (RPI-compatible pinout)

Pin	Description
1	GND
2	CSI_DATA0_N_R
3	CSI_DATA0_P_R
4	GND
5	CSI_DATA1_N_R
6	CSI_DATA1_P_R
7	GND
8	CSI_CLOCK_N_R
9	CSI_CLOCK_P_R
10	GND
11	NI
12	NI
13	GND
14	NI
15	NI
16	GND
17	CAM_ENABLE
18	CAM_PWR_LED
19	GND
20	CSI_I2C_SCL_3V3
21	CSI_I2C_SDA_3V3
22	3V3_carrier

Audio

Connector located on carrier, standard 3.5 mm audio jack with mic

LAN Ports

2x RJ45 connectors for wired network interfaces
The network interfaces come from the SoC over 2 TI DP83867IR phy

SDIO

One MicroSD card-slot is located on the carrier, acting as device storage or boot media.

Pin Headers for Slow Speed Signals

GPIO Header (J6)

Pin	Description	Pin	Description
1	1V8_carrier	2	GND
3	GPIO_A_0	4	GPIO_B_0
5	GPIO_A_1	6	GPIO_B_1
7	GPIO_A_2	8	GPIO_B_2
9	GPIO_A_3	10	GPIO_B_3
11	GPIO_A_4	12	GPIO_B_4
13	GPIO_A_5	14	GPIO_B_5
15	N/A	16	GPIO_B_6
17	N/A	18	GPIO_B_7
19	GND	20	1V8_carrier

Note: GPIO’s 4,5,6, and 7 are reserved for board functions.

I²C

All I2C busses are located on header J44

Pin	Description	Pin	Description
1	3V3_carrier	2	GND
3	I2C_A_SCL_3V3	4	I2C_B_SCL_3V3
5	I2C_A_SDA_3V3	6	I2C_B_SDA_3V3

SPI

All SPI busses are located on header J45

Pin	Description	Pin	Description
1	SPI_A_SDI_IO0	2	SPI_B_SDI
3	SPI_A_SDO_IO1	4	SPI_B_SDO
5	SPI_A_CS0#	6	SPI_B_CS0#
7	SPI_A_CS1#	8	SPI_B_CS1#
9	SPI_A_SCK	10	SPI_B_SCK
11	VCC_OUT_IO	12	GND

Note: During boot, SPI_A_SCK and SPI_A_CS0# must be kept low.

CAN bus

CAN buses located on header JP5 & JP6, and the transceiver is already inline

Pin	Description
1	CAN_A_H_C
2	CAN_A_L_C
3	GND

Pin	Description
1	CAN_B_H_C
2	CAN_B_L_C
3	GND

UARTS

All available UARTs are located on header J46

Pin	Description	Pin	Description
1	UART_A_TX	2	UART_A_RX
3	UART_A_RTS#	4	UART_A_CTS#
5	UART_B_TX	6	UART_B_RX
7	UART_B_RTS#	8	UART_B_CTS#
9	UART_C_TX	10	UART_C_RX
11	1V8_carrier	12	GND
13	3V3_carrier	14	5V_carrier

PWM and ADC

PWM and ADC share J50 header

Pin	Description	Pin	Description
1	ADC_0	2	GND
3	ADC_1	4	GND
5	PWM_0	6	PWM_1
7	PWM_2	8	PWM_3

JTAG

JTAG signals are located on header J36 and JP7

Pin	Description	Pin	Description
1	1V8_carrier	2	JTAG_TMS
3	GND	4	JTAG_TCK
5	GND	6	JTAG_TDO
7	JTAG_RTCK	8	JTAG_TDI
9	GND	10	SYS_RST#

JP7 PIN	Description
1	JTAG_nTRST
2	JTAG_DEBUG_EN

Onboard Jumpers and Switches

Connector Specifications

List of connectors and counterparts:

DC Jack: 2.5mm
LVDS Connector: 15P x 2, P=1.25mm wafer (DF13E-30DP-1.25V(52), Hirose)
Backlight Connector: 5P, 2mm pitch
MIPI-CSI: FPC, 22P, 0.5mm pitch (identical to Raspberry Pi)

Header Pinouts:

All headers are 2.0mm pitch, except for the ADC/PWM header, which uses 2.54mm pitch.

J6: GPIO Header – 10P x 2, P=2.0mm
J19: LCD Backlight Voltage Select – 3P x 2, P=2.0mm
J44: I2C Header – 3P x 2, P=2.0mm
J45: SPI Header – 6P x 2, P=2.0mm
J45: UART Header – 7P x 2, P=2.0mm
JP5/6: CAN Header – 3P x 1, P=2.0mm
J50: ADC and PWM Header – 4P x 2, P=2.54mm

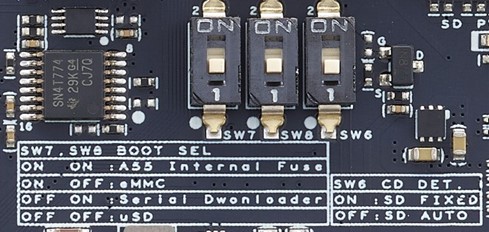

Boot Select Switches

The i.MX93 can boot from different media; therefore, different boot media can be enabled via switch combinations:

eMMC on-module storage
SDIO SD Card located on the carrier
Serial boot mode, used with Universal Update Utility (UUU) to provision the board
- SW7 and SW8 are used to select the boot media, with SW8 also used for SD card detection.

LCD Panel and Backlight Voltage Setting

The J19/J20 pinouts are labeled as shown below:

The LCD backlight enable signal provides 5V/12V options via J19

- The LCD panel power offers a selection of 3/5/12 VDC via J20
